History

36M injured 13 years ago, chronic ulnar wrist pain

Figure 1 for case extensor carpi ulnaris tendon ( RID2382 ) — Figure 1

Figure 2 for case extensor carpi ulnaris tendon ( RID2382 ) — Figure 2

Figure 3 for case extensor carpi ulnaris tendon ( RID2382 ) — Figure 3

Discussion

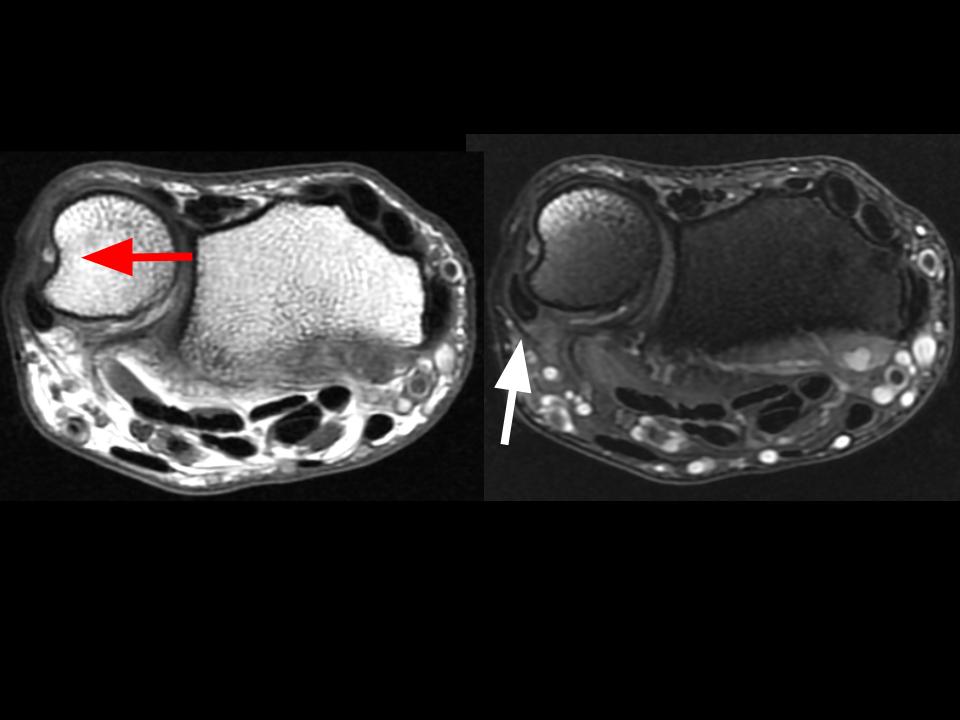

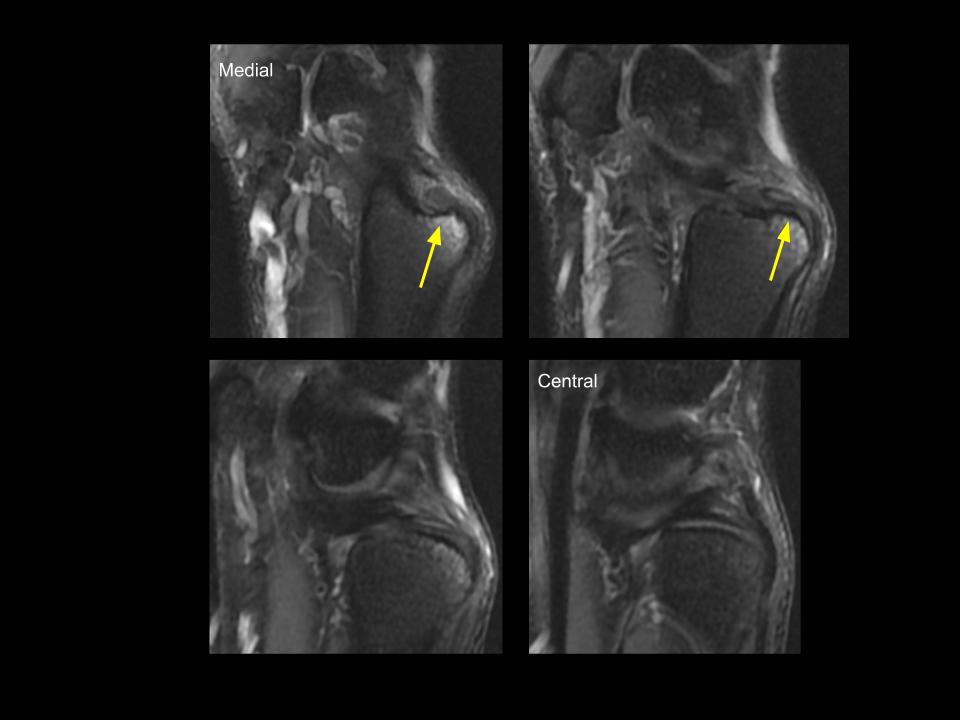

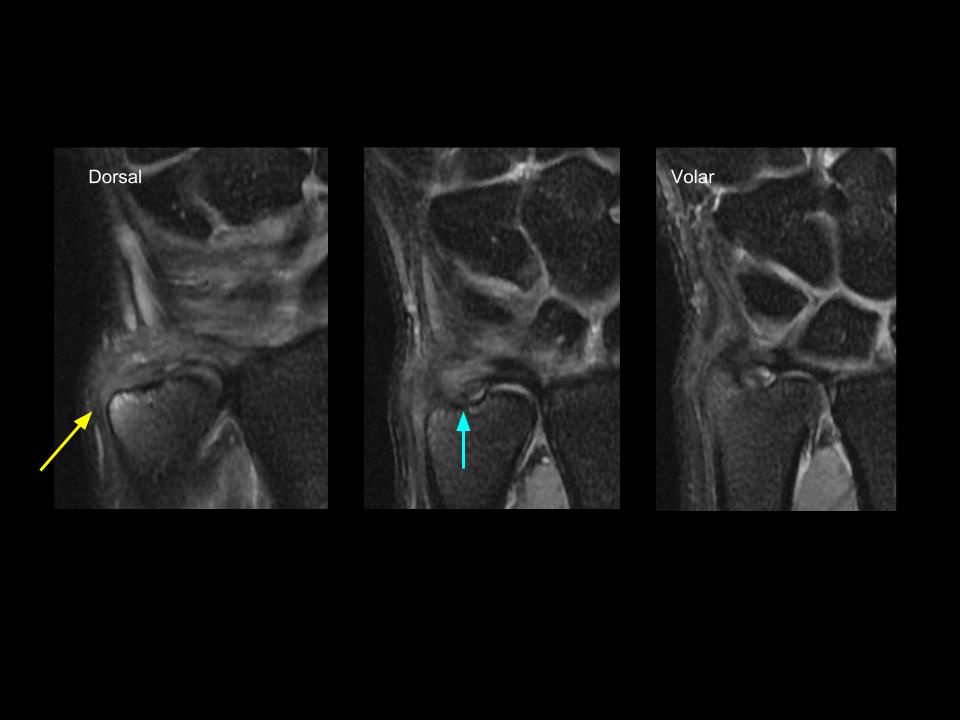

In image 1, despite pronated wrist positioning (note the dorsal ulnar groove points medially, in neutral it would point roughly to 12:00), there is medial dislocation of the intact ECU; this implies chronic ECU subsheath tear. In the Sag images, I believe there is a chronic low grade sprain of the foveal insertion of the dorsal band distal radioulnar ligament (yellow arrows). In the Cor images, there may be fraying of the dorsal aspect of the foveal lamina TFCC. Reference article.

Diagnosis

extensor carpi ulnaris tendon ( RID2382 )

Hilary Umans, MD
